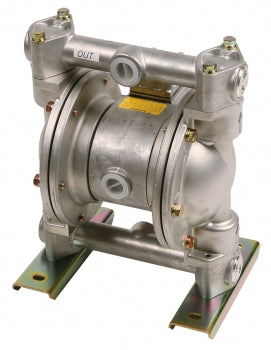

Liquidynamics  3/4” Double Diaphragm Pump | P/N 20015-Y
Liquidynamics  3/4” Double Diaphragm Pump | P/N 20015-Y
Liquidynamics  3/4” Double Diaphragm Pump | P/N 20015-Y

Liquidynamics 3/4” Double Diaphragm Pump | P/N 20015-Y

SKU: LiquiDynamics 20015-Y-1
Vendor
Brand: LiquiDynamics
Regular price
$647.20
Sale price
$647.20
Quantity must be 1 or more

P/N 20015-Y

3/4” double diaphragm Pump with aluminum body, Buna N diaphragm and seals. Pump is rated at 27 GPM at 100 PSI air supply, dry lift capacity of 18 ft. and discharge distance of 180 ft. (with reduced flow). Typically used with fresh and used oil. Maximum fluid temperature 180° F.



P/N 20015-Y2

Same as 20015-Y above except it uses a dual inlet to allow mixing of fluids at 50:50 ratio. Typically used to mix antifreeze and water.



P/N 20016-Y

Same as 20015-Y except is UL listed for use with diesel fuel.



P/N 20015-YV

3/4” d.d. Pump w/ vertical manifold allows mounting of pump directly onto tank or drum. Has 1” NPTF inlet fitting. See P/N 950027 on page 107 for complete pump kit to fit 55 gallon drum or 275 gallon oval tank.
