ADDITIONAL INFORMATION:

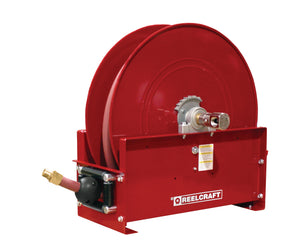

Hose Reel, 3/4 x 50ft
- Substantial Base Frame – The full width frame has the greatest amount of mounting area and overall strength of reels within its class
- Full Flow Stress Free Swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Long Life Drive Spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Robust Latching mechanism – Latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
Manufacturer: Reelcraft
Country of Origin Code: US
UPC: 699567001782
Rating: 250 psi
Hose ID: 3/4 inch
Hose OD: 1.075
Length Capacity: 50 feet
Outlet: 3/4 (M)NPTF
Inlet: 3/4 (F)NPTF
Max Temp F: 150 deg F
The Series 9000 mobile base reels offer the greatest amount of stability for high volume air, water, fuel, and petroleum. Ideal for portable service trucks, permanent service or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion resistant product suitable for a wide variety of heavy duty applications. Basic reels without hose will handle air, water, or oil; consult Reelcraft for other applications.
- Substantial Base Frame - The full width frame has the greatest amount of mounting area and overall strength of reels within its class
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Long Life Drive Spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Robust Latching mechanism - Latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
Harmonized Tariff Code: 8479.89.9899
Country of Origin Code: US
UPC: 699567001782
