ADDITIONAL INFORMATION:

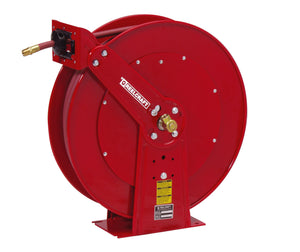

Hose Reel, 3/8 x 100ft
- Reinforced Steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
- Full Flow Stress Free Swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Long Life Drive Spring – The unitized cast aluminum fluid path with built in declutching arbor virtually eliminates possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Quality Finish and Corrosions Resistant – Individually powder coated components offer the maximum protection from premature corrosion.
Manufacturer: Reelcraft
Country of Origin Code: US
UPC: 699567001614
Rating: 300 psi
Hose ID: 3/8 inch
Hose OD: 0.600
Length Capacity: 100 feet
Outlet: 3/8 (M)NPTF
Inlet: 1/2 (F)NPTF
Max Temp F: 150 deg F
The Series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All -steel construction and a baked on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications.
- Reinforced Steel - The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Long Life Drive Spring - The unitized cast aluminum fluid path with built in declutching arbor virtually eliminates possibility of leakage and spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.
Harmonized Tariff Code: 8479.89.9899
Country of Origin Code: US
UPC: 699567001614
