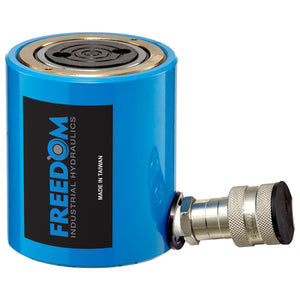

Freedom Hydraulics 30 Ton Low Profile, 2.50" Stroke - SL302

Name: Freedom Hydraulics 30 Ton Low Profile, 2.50" Stroke - SL302
Brand: Freedom Hydraulics
SKU: SL302
Price: 596.80 USD
Availability: InStock

SKU:SL302

Vendor

Brand: Freedom Hydraulics

Sale price

$596.80

ADDITIONAL INFORMATION:

Designed for use in confined spaces
Plunger wiper seal keeps out contamination and debris
Upper and lower bronze bearings for minimal wear of
cylinder rod and maximizing lifetime of cylinder
Industrial grade spring for increased spring performance and lifetime
Industrial grade steel construction withstands even
the most demanding of applications
• Chrome plated piston rod eliminates corrosion and rust
3/8” NPTF female coupler and dust cap on all models

Categories: Cylinders, Low Profile Cylinders

Rated Capacity (Cap.)	30	.
Stroke (in.)	2.46	.
Model #	SL302	.
Cylinder Effective Area (in.₂)	6.85	.
Oil Capacity (in.₃)	16.8	.
Collapsed Height (in.)	4.63	(A)
Extended Height (in.)	7.09	(B)
Outside Diameter (in.)	4.02	(C)
Cylinder Bore Dia. (in.)	2.95	(D)
Plunger Diameter (in.)	2.56	(E)
Base to Coupler Port	0.63	(F)
Saddle Distance above Cylinder	0.04	(G)
Piston Thread Length	0.35	(H)
Saddle Diameter	2.13	(I)
Weight (lbs.)	22.27
