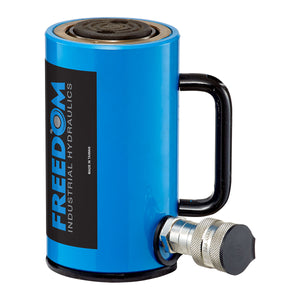

Freedom Hydraulics 30 Ton Single Acting Aluminum Cylinder, 2.00" Stroke - SA302

Name: Freedom Hydraulics 30 Ton Single Acting Aluminum Cylinder, 2.00" Stroke - SA302
Brand: Freedom Hydraulics
SKU: SA302
Price: 1324.38 USD
Availability: InStock

SKU SA302

Save 10%

$1,477.44

$1,477.44 - $1,477.44

$1,477.44

$1,324.38

$1,324.38 - $1,324.38

$1,324.38

Description

Lightweight aluminum body allows for easy carrying and positioning
Plunger wiper seal keeps out contamination and debris
Bearing reduces side loading issues and increases life
Single acting spring load return
Steel base plate protects the cylinder base
Stop ring prevents piston from being overextended
3/8” NPTF female coupler and dust cap on all models

Categories: Cylinders, 30 Ton Capacity, Aluminum Spring Return Cylinders

Capacity (tons)	30	.
Stroke (in.)	1.99	.
Model #	SA302	.
Cylinder Effective Area (in.2)	6.85	.
Oil Capacity (in.3)	13.6	.
Collapsed Height (in.)	7.17	(A)
Extended Height (in.)	9.16	(B)
Outside Diameter (in.)	3.94	(C)
Cylinder Bore Dia. (in.)	2.95	(D)
Plunger Diameter (in.)	2.56	(E)
Base to Coupler Port (in.)	1.07	(F)
Saddle Distance above Cyl. (in.)	0.12	(G)
Piston Thread Length (in.)	0.47	(I)
Base Mounting Holes		.
Bolt Bolt Circle (in.)	3.15	(J)
Thread	M6 x P1.0	(K)
Thread Depth (in.)	0.47	(L)
Saddle Diameter (in.)	2.22	(O)
Weight (lbs.)	11.65
