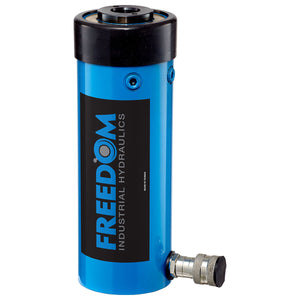

Freedom Hydraulics 30 Ton Single Acting Hollow Hole Cylinder, 6.00" Stroke - SHS306

Name: Freedom Hydraulics 30 Ton Single Acting Hollow Hole Cylinder, 6.00" Stroke - SHS306
Brand: Freedom Hydraulics
SKU: SHS306
Price: 1944.51 USD
Availability: InStock

SKU SHS306

$1,944.51 - $1,944.51

$1,944.51

$1,944.51 - $1,944.51

$1,944.51

Quantity

Description

Hollow Hole design allows for both push and pull applications
Chrome plated piston rod eliminates corrosion and rust
Dual wiper seals keep out contamination and debris
Single acting spring load return
Collar threads for easy fixturing
3/8” NPTF female coupler and dust cap on all models

Categories: Hollow Hole Single Acting, Cylinders, 30 Ton Capacity, Hollow Hole Cylinders

Rated (Cap.)	30	.
Max. (Cap.)	37.0	.
Stroke (in.)	6.09	.
Model #	SHS306	.
Cylinder Effective Area (in.2)	7.39	.
Oil Capacity (in.3)	45.24	.
Collapsed Height (in.)	13.00	(A)
Extended Height (in.)	19.09	(B)
Outside Diameter (in.)	4.50	(C)
Cylinder Bore Dia. (in.)	3.54	(D)
Plunger Diameter (in.)	2.48	(E)
Center Hole Dia.	1.31	(F)
Base to Coupler Port.	0.85	(G)
Saddle Distance above Cyl. (in.)	0.39	(H)
Piston Internal Thread (in.)	1-13/16″-16	(I)
Piston Thread Length (in.)	40.9	(J)
.	.	.
Base Mounting Holes		.
Bolt Circle (in.)	3.62	(K)
Thread	3/8″-16	(L)
Thread Depth (in.)	0.55	(M)
.	.	.
Collar Thread (in.)	4-1/2″-12	(N)
Collar Thread Length (in.)	1.65	(O)
Saddle Diameter (in.)	2.48	(P)
Weight (lbs.)	42.99
