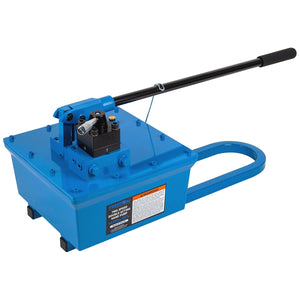

Freedom Hydraulics 427 IN3 10,000 PSI Two Speed Hand Pump - Double Acting, 4 Way 3 Position Valve - PH427D

Name: Freedom Hydraulics 427 IN3 10,000 PSI Two Speed Hand Pump - Double Acting, 4 Way 3 Position Valve - PH427D
Brand: Freedom Hydraulics
SKU: PH427D
Price: 2560.22 USD
Availability: InStock

SKU PH427D

Save 10%

$2,856.11

$2,856.11 - $2,856.11

$2,856.11

$2,560.22

$2,560.22 - $2,560.22

$2,560.22

Description

High strength metal reservoir eliminates reservoir cracking
Shop air pressure range of 40-170 psi
Ideal for frame machines and other OEM equipment
Internal pressure relief valve protects from overloading
Maximum working pressure at 10,000 psi

Categories: Hand Pumps, Double Acting Hand Pumps, Pumps

Model #	PH427D
Usable Oil Capacity (in³/min)	433
Valve Function	Double Acting
Pump Type	2 Speed
Pressure Rating	.
1st Stage (psi)	400
2nd Stage (psi)	10000
Oil Displacement Per Stroke	.
1st Stage (in³)	6.81
2nd Stage (in³)	0.25
Maximum Operating Force (lbs.)	78
Piston Stroke	1.26
Oil Outlet Port	3/8″-18NPTF
Weight (lbs.)	63.5
