Freedom Hydraulics 5 Ton Single Acting Cylinder, 0.64" Stroke - S50 - Empire Lube Equipment

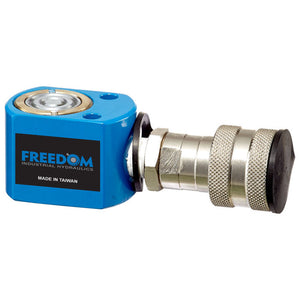

Freedom Hydraulics 5 Ton Single Acting Cylinder, 0.64" Stroke - S50

by Freedom Hydraulics
$258.33 - $258.33
$258.33
$258.33 - $258.33
$258.33
  • Plunger wiper seal keeps out contamination and debris
  • Upper and lower bronze bearings for minimal wear of cylinder rod and maximizing lifetime of cylinder
  • Industrial grade springs for increased spring performance and lifetime
  • Industrial grade steel construction withstands even the most demanding of applications
  • Chrome plated piston rod eliminates corrosion and rust
  • Base mounting holes, collar threads and plunger threads available on most models
  • 3/8” NPTF female coupler and dust cap on all models



Specifications

Capacity (tons) 5 .
Stroke (in.) 0.64 .
Model # S50 .
Cylinder Effective Area (in.2) 1.1 .
Oil Capacity (in.3) 0.7 .
Collapsed Height (in.) 1.64 (A)
Extended Height (in.) 2.28 (B)
Outside Diameter (in.) 2.32 (C)
Cylinder Bore Dia. (in.) 1.18 (D)
Plunger Diameter (in.) 1 (E)
Base to Coupler Port (in.) 0.75 (F)
Saddle Distance above Cyl. (in.) 0 (G)
Piston Internal Thread (in.) – (H)
Piston Thread Length (in.) – (I)
. . .
Base Mounting Holes . .
Bolt Circle (in.) – (J)
Thread (in.) – (K)
Thread Depth (in.) – (L)
. . .
Collar Thread (in.) – (M)
Collar Thread Length (in.) – (N)
Saddle Diameter (in.) 1 (O)
Weight (lbs.) 1.87
