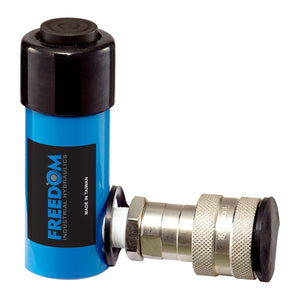

Freedom Hydraulics 5 Ton Single Acting Cylinder, 1.00" Stroke - S51

Name: Freedom Hydraulics 5 Ton Single Acting Cylinder, 1.00" Stroke - S51
Brand: Freedom Hydraulics
SKU: S51
Price: 395.37 USD
Availability: InStock

SKU S51

Save 10%

$441.06

$441.06 - $441.06

$441.06

$395.37

$395.37 - $395.37

$395.37

Description

Plunger wiper seal keeps out contamination and debris
Upper and lower bronze bearings for minimal wear of cylinder rod and maximizing lifetime of cylinder
Industrial grade springs for increased spring performance and lifetime
Industrial grade steel construction withstands even the most demanding of applications
Chrome plated piston rod eliminates corrosion and rust
Base mounting holes, collar threads and plunger threads available on most models
3/8” NPTF female coupler and dust cap on all models

Categories: Single Acting Cylinders, 5 Ton Capacity, Cylinders

Specifications

Capacity (tons)	5	.
Stroke (in.)	3.02	.
Model #	S53	.
Cylinder Effective Area (in.2)	1.1	.
Oil Capacity (in.3)	3.3	.
Collapsed Height (in.)	6.52	(A)
Extended Height (in.)	9.54	(B)
Outside Diameter (in.)	1.5	(C)
Cylinder Bore Dia. (in.)	1.18	(D)
Plunger Diameter (in.)	1	(E)
Base to Coupler Port (in.)	0.79	(F)
Saddle Distance above Cyl. (in.)	0.25	(G)
Piston Internal Thread (in.)	3/4″-16UCF	(H)
Piston Thread Length (in.)	0.57	(I)
.	.	.
Base Mounting Holes	.	.
Bolt Circle (in.)	1	(J)
Thread (in.)	1/4″-20UNC	(K)
Thread Depth (in.)	0.51	(L)
.	.	.
Collar Thread (in.)	1 1/2″-16UN	(M)
Collar Thread Length (in.)	1.1	(N)
Saddle Diameter (in.)	1	(O)
Weight (lbs.)	3.09
