| Capacity (tons) |
50 |
. |
| Stroke (in.) |
4.00 |
. |

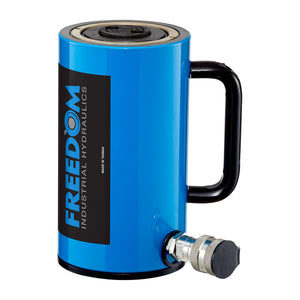

| Model # |
SA504 |
. |
| Cylinder Effective Area (in.2) |
10.99 |
. |
| Oil Capacity (in.3) |
43.9 |
. |
| Collapsed Height (in.) |
9.29 |
(A) |
| Extended Height (in.) |
13.29 |
(B) |
| Outside Diameter (in.) |
5.12 |
(C) |
| Cylinder Bore Dia. (in.) |
3.74 |
(D) |
| Plunger Diameter (in.) |
3.15 |
(E) |
| Base to Coupler Port (in.) |
0.95 |
(F) |
| Saddle Distance above Cyl. (in.) |
0.12 |
(G) |
| Piston Thread Length (in.) |
0.59 |
(I) |
| Base Mounting Holes |
|
. |
| Bolt Bolt Circle (in.) |
4.33 |
(J) |
| Thread |
M8 x P1.25 |
(K) |
| Thread Depth (in.) |
0.47 |
(L) |
| Saddle Diameter (in.) |
1.97 |
(O) |
| Weight (lbs.) |
21.9 |
