| Rated (Cap.) |
60 |
. |
| Max. (Cap.) |
69.0 |
. |
| Stroke (in.) |
3.00 |
. |

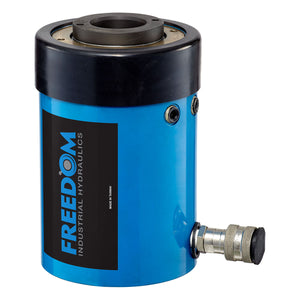

| Model # |
SHS603 |
. |
| Cylinder Effective Area (in.2) |
13.87 |
. |
| Oil Capacity (in.3) |
41.49 |
. |
| Collapsed Height (in.) |
9.77 |
(A) |
| Extended Height (in.) |
12.77 |
(B) |
| Outside Diameter (in.) |
6.25 |
(C) |
| Cylinder Bore Dia. (in.) |
4.92 |
(D) |
| Plunger Diameter (in.) |
3.54 |
(E) |
| Center Hole Dia. |
2.12 |
(F) |
| Base to Coupler Port. |
1.26 |
(G) |
| Saddle Distance above Cyl. (in.) |
0.50 |
(H) |
| Piston Internal Thread (in.) |
2-3/4″-16 |
(I) |
| Piston Thread Length (in.) |
0.87 |
(J) |
| . |
. |
. |
| Base Mounting Holes |
|
. |
| Bolt Circle (in.) |
5.13 |
(K) |
| Thread |
1/2″-13 |
(L) |
| Thread Depth (in.) |
0.55 |
(M) |
| . |
. |
. |
| Collar Thread (in.) |
6-1/4″-12 |
(N) |
| Collar Thread Length (in.) |
1.91 |
(O) |
| Saddle Diameter (in.) |
3.54 |
(P) |
| Weight (lbs.) |
77.16 |
