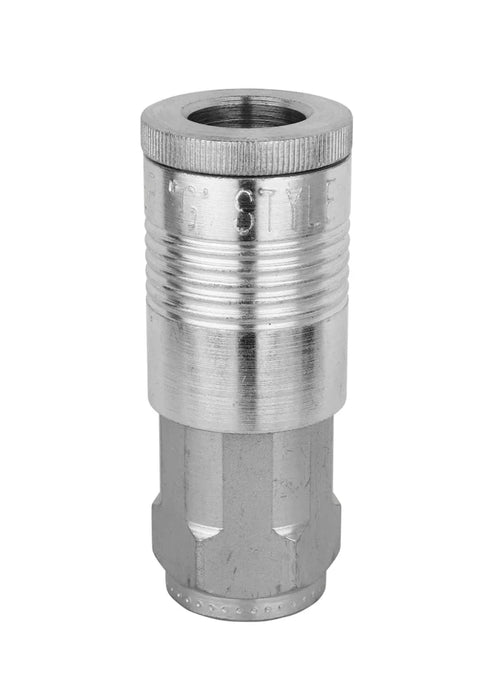

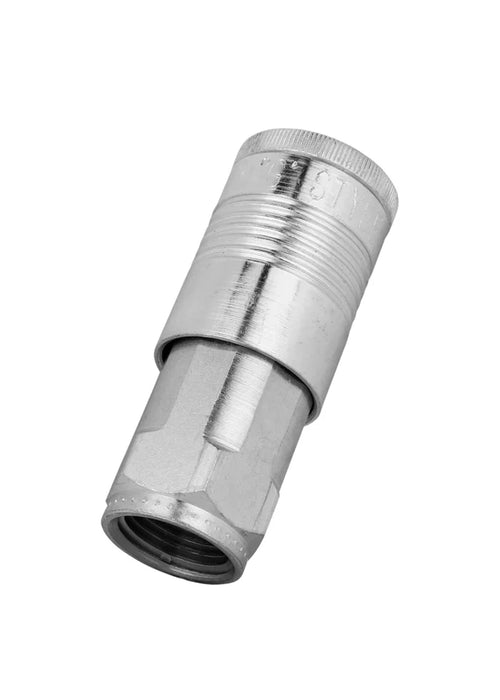

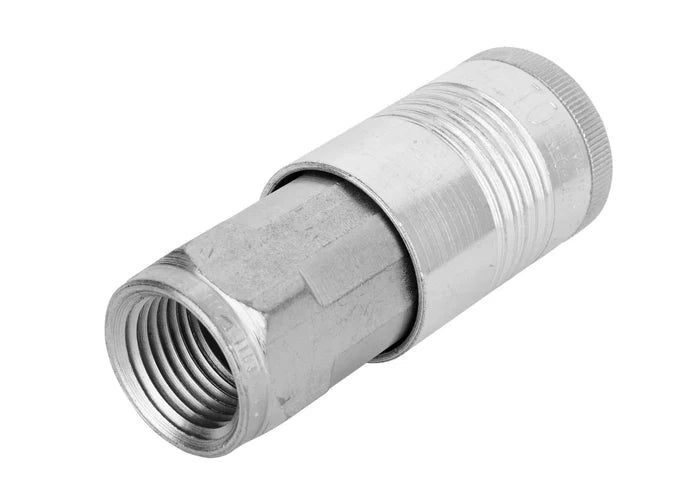

MT-RSR Air Coupler Fitting - G-Style, 1/2" FNPT MIL-1815

1/2" Female 'G' Coupler

1/2" NPT G style couplers are used in applications that require over 60 SCFM. There are two Milton G Style couplers, but both will function the same with G style plugs. Milton G style couplers are made of steel and are plated to resist rust. With a 1/2" basic airflow, these plugs offer up to 99 SCFM, making them the highest SCFM rated couplers. Maximum pressure of 300 PSI.

• 1/2" national pipe thread
• Maximum inlet pressure of 300 pounds per square inch
• Air flow of 99 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• Buna-N seal

Interchangeable Part Numbers:

MIL1815, 54424, A-17, C10, TFCF44-000, 90-662, 652008, 1815, 3512, D-17, 13-712, 17, CO-111
