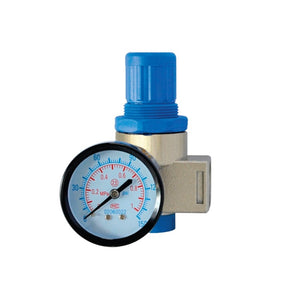

Wolflube Air Regulator - Inlet 1/2in - Up to 150 PSI

The Filter-Regular Combination & Lubricator are attached in series using spacers & piping adapters, which makes the 2 components easily removable/mountable without disturbing the pipeline. Come complete with a wall mounting bracket.

• Air Filter: is used to separate dust, dirt, moisture & other contaminants from compressed air. The filter has a Die Cast Aluminum body &
  bowl with a high-performance Sintered Bronze Filtering element. The filter is designed with a separator & shield for efficient moisture
  separation.
• Regulator: maintains a steady outlet pressure, unaffected by variations/fluctuations in the inlet pressure. Regulators have a Non-Raising
  “Press to Lock” adjusting knob for locking at any set pressure. Regulators work on a Diaphragm operated, relieving type mechanism with
  pressure compensated by balanced poppet.
• Air Lubricators: is used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow. Lubricators are Fog/Micro Mist type, up to 50’ pipe runs. Designed for best performance with 32-grade oil. These have a Die Cast Aluminum head & bowl. The head is fitted with Oil Drop Indicator, Oil drop controller, & Oil Filling Plug.
