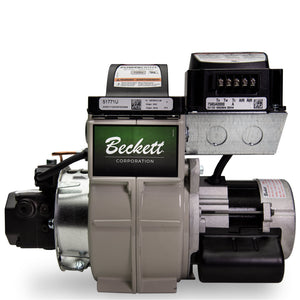

The AF & AFG burners utilize the most technically advanced components to meet the performance requirements of high efficiency equipment and meet the demands of biofuels to reduce emissions and meet carbon reduction goals. The AF/AFG burners are certified for traditional home heating oils, biodiesel blends to 20% (B20) and Renewable Diesel blends to 95% (R95) to give consumers reliable performance while reducing the carbon footprint of your heating system.

Capacities

  • 0.40 to 3.00 gph
  • 56,000 to 420,000 BTU/hr input

Fuels

  • ASTM D396 for #1 & #2 Heating Oil
  • ASTM D396 for B6 – B20 biodiesel blends
  • D975 for Renewable Diesel to 95% (R95)

Dimensions (standard)

  • Height: 11½”
  • Width: 12⅞”
  • Depth: 6 9/16“

Electrical Characteristics

  • Power Supply: 120VAC / 60Hz / 1 Phase
  • Motor: Permanent Split Capacitor (PSC) 3450 rpm, NEMA M-Flange
  • Ignition: Solid State, rated for continuous duty. Uses 75% less energy than traditional ignition transformers
  • Operating Load: 5.8 Amps @ 120VAC
  • Alternate Voltages / Frequencies: Contact Customer Service for availability

Fuel Unit

  • Beckett CleanCut®: Single or Two Stage standard
  • Alternates available – special order

Chassis Plan

  • Models to meet most retrofit applications. Consult your heating professional for specific application information.
  • Replacement chassis carry new burner warranty and current fuel certifications. See Warranty section for additional information.

Performance Capabilities

Nozzle Line Electrode Assembly – Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.

Flame Retention Head – One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35%.

Drive Motor – Continuous duty, permanent split capacitor, built for daily hard use and years of trouble-free operation. Overload protection included.

Ignition Transformer – 10,000 V/23 mA secondary positively and smoothly ignites fuel. Electrically balanced and shielded. No TV interference. Designed for heavy duty continuous operation.

Connector Tube Fitting – Special Beckett, high quality flare fitting.

Burner Housing – Sturdy die cast, precisely machined aluminum housing aligns pump and motor for smoothest operation and longest coupling life.

Order Burner Chassis

  • Model AF Burner Chassis
  • Type of Fuel Unit
  • Primary Control

Order Air Tube Combination

Air Tube Length (dimension A) and Firing Rate or Air Tube Combination Code (see table).

Order Accessories

  • Specify mounting requirement – Flanges and pedestals listed below
  • Sound Cover available – see Product Sheet
  • Outside Air Kits available – see Product Sheet or your heating professional
  • Spare parts, related controls, etc.

Air Tube Combination Chart

To Determine Air Tube Length

The Air tube Length (Dimension A) is the distance from the front of the burner housing to the end of the air tube.

No. 5685 Pedestal Kit – For conversion applications where no mounting flange is required.
No. 5606 Pedestal Kit Extended – Provides elevation from 8¼” to 13″.
