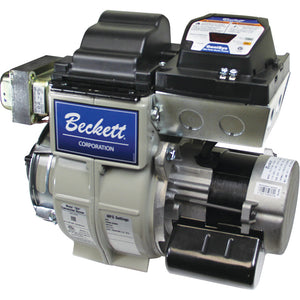

Beckett Corp CG4 Gas Burner

• Description

A typical oil to gas conversion includes replacing your existing oil heat boiler and all of the pipes, pumps and electrical components near the boiler. Converting from oil to gas can be costly, messy and disruptive to your home. The Beckett CG4 conversion gas burner directly replaces only the oil burner on your oil heat boiler leaving all other system components in place saving thousands of dollars. Many brands available for conversions such as Peerless, Weil McLain, Buderus and many more popular brands.

The CG4 gas burner’s design and technically advanced components meet increasing demand for improved gas burner performance in high-efficiency appliances and modern well-insulated homes.

• 24 volt gas valve, 3.5″  W.C. manifold.
• New Beckett GeniSys™ 7590 advanced gas burner control with flame rod and air proving.
• New Beckett gas igniter.
• Proven Beckett fixed head combustion.
• Easy access to orifice for rate change and propane conversion.
• Air guide provides high static pressure for smooth starts and minimal pulsation.
• Removable gas gun assembly for ease of servicing.

Capacities

• Fixed Heads
• F3G 80 to 140 MBH
• F4G 130 to 190 MBH
• F6G 180 to 250 MBH

Fuels

• Natural Gas – .64 specific gravity
• LP Gas – 1.53 specific gravity

Dimensions (standard)

• Height: 14.4″ (10.3″ Chassis Only)
• Width: 13.”
• Depth: 15.8″
• Air tube diameter: 4″

Electrical Characteristics

• Motor: 120 V PSC ¹/₇hp, 3450 rpm
• Power Supply: 120 V
• Ignition: Direct Spark
• Operating Load: 3 amps
• Alternate Voltages or Frequency: Consult Customer Service

Ambient Operating Temperature

• -32°F (-37°C) Minimum
• +150°F (+65°C) Maximum
