Beckett Lever Valves

The Lever Valve offers added protection in certain situations. It is sometimes used at the Tank and held open by a spring loaded flexible wire in which fusible links are set. If the temperature at the link reaches standard temperature (165°F), the links will pull apart and the valve will immediately close, stopping the flow of oil. (All accessories shown below are included).

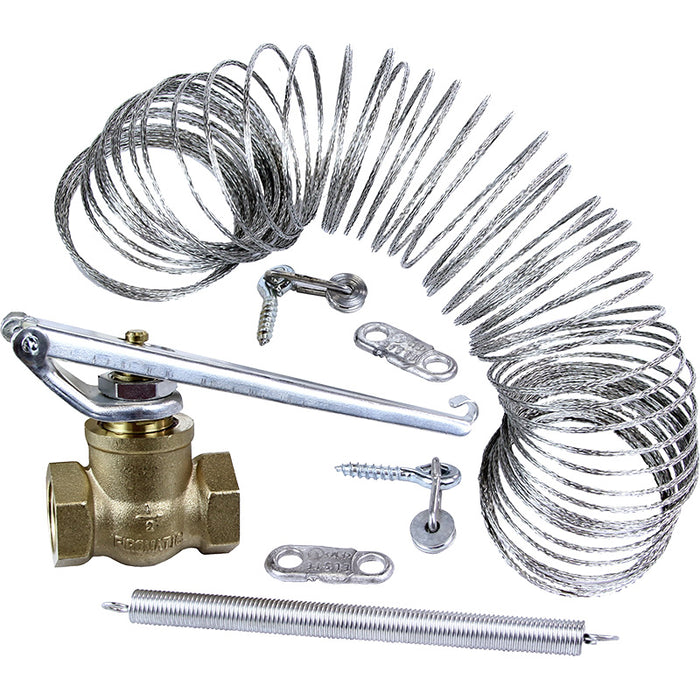

Accessories furnished with each each Lever Valve: take-up spring, coil of braided wire, two fusible links (set at 165°F) and two Pulleys.  212°F links available (purchased separately).

• 10 day handling time  ships direct  from manufacturer
