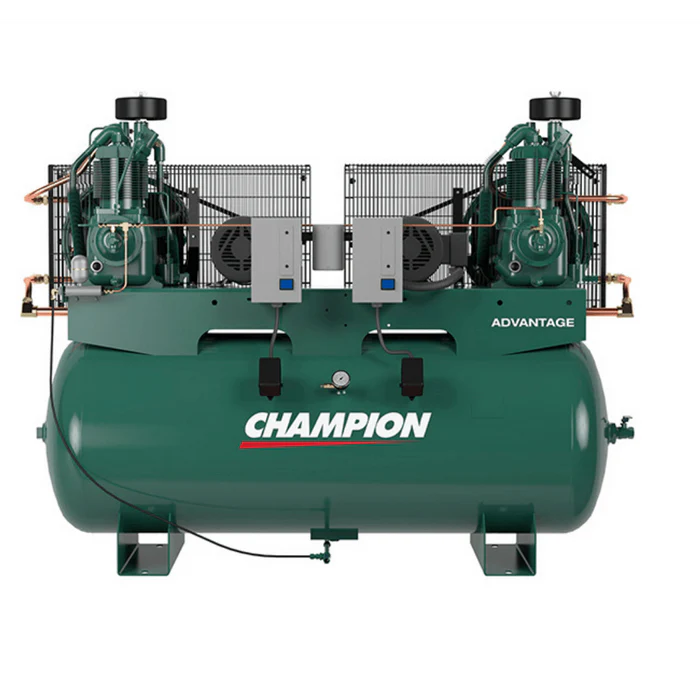

MT-RSR Champion 5HP Duplex Compressor 120 Gal. Tank CHMP-ADVA-D38

Champion 5HP Duplex Compressor 120 Gal. Tank

Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life, and tremendous value.

120 Gallon With (2) R-15B R-Series Reciprocating Compressor Pumps

Specifications:

• (2) 5 HP Motors - 10 HP Total
• Each Motor - 2 Cylinders
• (1) First Stage Piston - 4.63" Bore
• (1) Second Stage Piston - 2.5" Bore
• Both Pistons - 3" Stroke
• 2 Qt Oil Capacity
• 400-1050 RPM
• 120 Gal Capacity
• Horizontal Package
• 75" x 33" x 54"
• 43.2 CFM @ 80 PSI
• 42.0 CFM @ 125 PSI
• 34.0 CFM @ 175 PSI

Interchangeable Part Numbers:

HR5D-12
