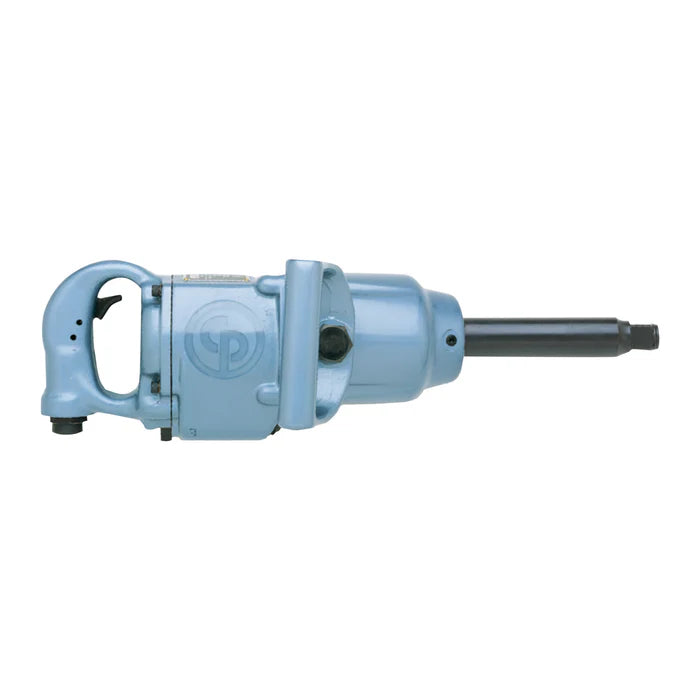

Chicago Pneumatic CP-797-6 1" Impact Wrench 6" Anvil

For users working in heavy vehicle tire changing applications who are looking for a 1" D-handle impact wrench, the CP797 series offers both power & durability.

Designed for heavy vehicle tire changing applications, the CP797 Series 1" impact wrench provides a torque of up to 1,400 ft.lbs / 1,898 Nm. The rocking dog impact mechanism and metal housing offer high durability for bolting applications.

Features

  • 1,400 ft.lbs (1,898 Nm) of max torque in reverse position for high productivity.
  • Metal housing and rocking dog impact mechanism for high durability and smooth operation.
  • Convenient reverse valve and teasing trigger for better comfort in use.
  • 6" Anvil for extended reach.

Specifications

Maximum Forward Torque 904 Ft-lb
Minimum Forward Torque 148 Ft-lb
Maximum Reverse Torque 1400 Ft-lb
Air Inlet Thread Size 1/2" NPT
Impact Mechanism  Double Rocking Dog
Body Material Aluminum
Output Drive Size 1" - Square
Free Speed 4,200 RPM


Don't forget to keep your tools lubricated! Use Marvel Air Tool Oil

Literature

Interchangeable Part Numbers

CPT797-6, 53342, T013901, CP797-6
