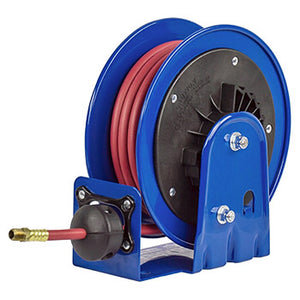

Coxreels LG Series LG-LP-115

Coxreels LG Series LG-LP-115

Coxreels® LG Series "Little Giant" is the first heavy duty lightweight reel on the market. The LG is ideal for commercial or industrial applications, where space or budget is restricted. Because of the LG Series extremely lightweight and compact structure, it can be installed almost anywhere. The little giant is compatible with either a 1/4" or 3/8" hose to tackle the jobs of reels almost double its size.

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
• GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.


• Model	Lbs	Hose	I.D.	O.D.	Ft.	PSI
  LG-LP-115	9	Y	1/4"	1/2"	15	300

• Model	W	H	L	X	Y	M	N
  LG-LP-115	5-1/4"	10-5/8"	10-1/2"	4-11/16""	8-3/8"	2-1/2"	6
