Coxreels SW Series SL19WT-175

Coxreels SW Series SL19WT-175

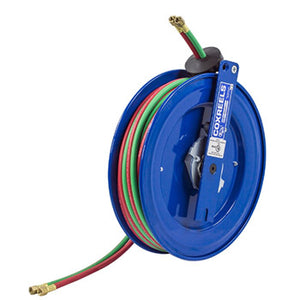

Coxreels® SW Series "Side Mount" spring driven hose reels for cabinet mount are unique in the way they mount and operate, making them compact and versatile. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. SW Series is available for air/water, oil, grease, oxy-acetylene and T Grade gas welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• External 90° full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
• Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• Mount left for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
• Hose control bar prevents hose from slipping off the disc.
• long lasting, chip resistant and rust inhibiting CPC powder coat finish, oxygen-acetylene or "T" grade welding hose, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length
• Side mount design for vertical flat surface, cabinet or enclosed space mounts
• 2-bolt mounting pattern easily mounts & detaches for ntemporary or permanent installation
• Solid one piece, heavy gauge steel arm base for nmaximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation
• Hose control bar prevents hose from slipping off the discs
• External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
• Swivel Seals: VITON®

DUAL FUEL GAS HOSE REELS
