Coxreels XTM Series XTM-MPL-650

Coxreels XTM Series  XTM-MPL-650

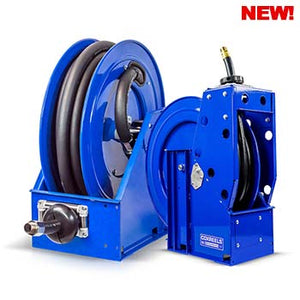

Coxreels® XTM "Extreme-Duty" Series is designed for high demand industries requiring a level of construction above Heavy-Duty or Industrial-Duty. These Extreme-Duty reels were built with mining, off-road, heavy equipment, and heavy equipment lubrication in mind. The XTM series features the most robust offerings available of the reel industry inside a solid all-welded box frame, with an integral roller bracket, focused to deliver the toughest reel for the toughest environments and applications. Made in USA with Coxreels legendary quality, the XTM Extreme Duty Reel combines the ultimate features into the world’s strongest reel solution.

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• BOX FRAME - Fully welded box frame construction, welded seams & redundant flanges. Wider frames feature Coxreels’ exclusive Super Hub™ triple axle support system
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• PRECISION BEARINGS - 1" solid steel axle & dual lubricated precision bearings for smooth & stable rotation.
• OTHER FEATURES INCLUDE - Enclosed factory tuned & matched cartridge-style spring motor, long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and stainless steel rollers.

SWIVEL

• External fluid path with machined from solid brass 90° full-flow NPT swivel inlet & swivel retaining plates
• Swivel Seals: NITRILE
• Electroless nickel plated steel swivel on 1" models
• Zinc plated steel swivel on HP models

DESIGN & STRUCTURE

• Fully welded box frame construction, welded seams & redundant flanges. Wider frames feature Coxreels’ exclusive Super Hub™ triple axle support system
• Accessible stainless steel pawl and pawl spring on ratchet locking mechanism
• Stainless Steel rollers on all models
• 1" solid steel axle & dual lubricated precision bearings for smooth & stable rotation

RETRACT

• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose at desired length

MEDIUM PRESSURE
