Description
JDOL-55
Air-Operated Grease Delivery System
These professional quality air-operated Grease Delivery Systems come as a complete package and include all required equipment. Built for durable and reliable operation, these systems fit 35 lb., 120 lb. and 400 lb. grease containers and come with a 50:1 high-pressure pump, control handle, Z-swivel, drum cover, follower plate and an 8-foot outlet hose.
Features include:
• Powered by 50:1 ratio high pressure pump
• Non-corrosive design for long-term use
• Heavy-duty control handle
• Z-swivel for ease-of-use
• Includes drum cover, follower plate and 8′ outlet hose
|
Specifications:
|
|
|
Pressure Ratio
|
50:1
|
|
Air inlet pressure
|
70 – 115 psi
|
|
Air inlet connection
|
1/4″ NPT (Female)
|
|
Air motor effective diameter
|
2.4″ (63mm)
|
|
Max pressure
|
5600 psi
|
|
Outlet connection
|
1/4″ NPT (Male)
|
|
Model
|
Cont.
|
Pump
|
Hose
|
Drum Cover
|
Control Handle
|
Follower Plate
|
Swivel
|
Weight
|
|
JDL-5
|
35 lb.
|
JDL-3640
|
JDH-1014
|
JD-3565
|
JD-3560
|
JD-3570
|
JD-3840Z
|
22 lbs.
|
|
JDL-16
|
120 lb.
|
JDL-3650
|
JDH-1014
|
JD-3566
|
JD-3560
|
JD-3571
|
JD-3840Z
|
27 lbs.
|
|
JDL-16C
|
(Same as JDL-16 but includes caster base)
|
|
JDL-55
|
400 lb.
|
JDL-3655
|
JDH-1014
|
JD-3567
|
JD-3560
|
JD-3572
|
JD-3840Z
|
35 lbs.
|

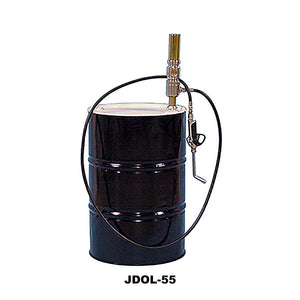

Air-Operated Oil Delivery System
These Air-Operated Oil Delivery Systems come as a complete package with all required equipment. These systems fit 16- and 55-gallon drums and are ideal for motor oil, synthetic oil, hydraulic oil and ATF. Each system is powered by a 3:1 medium pressure pump, comes with a delivery gun, 10’ delivery hose, and the 16-gallon system includes a drum cover.
Features include:
• Powered by 3:1 ratio medium pressure pump
• Differential air motor ensures smooth pumping
• Heavy-duty control valve
• 10′ delivery hose
|
Specifications:
|
|
|
Pressure Ratio
|
3:1
|
|
Air inlet pressure
|
70 – 115 psi
|
|
Air inlet connection
|
1/4″ NPT (Female)
|
|
Air motor effective diameter
|
2.49″ (63mm)
|
|
Max pressure
|
348 psi
|
|
Outlet connection
|
1/2″ NPT (Male)
|
|
Model
|
Container
|
Pump
|
Hose
|
Delivery Gun
|
Cover
|
Weight
|
|
JDOL-16
|
16-gal
|
JD-3610
|
JDM-1038
|
JD-3930
|
JD-3566A
|
26 lbs
|
|
JDOL-55
|
55-gal
|
JD-3615
|
JDM-1038
|
JD-3930
|
NA
|
22 lbs
|
