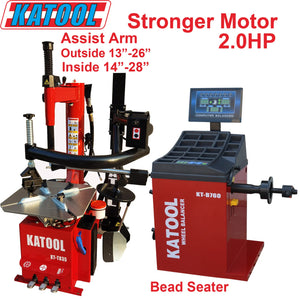

Combo 12: Tire Changer & Wheel Balancer
Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
-- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim.
-- Inflation gauge with pedal control
-- With high quality spade cover, effective prevent damage rim.
-- Pull type pedal control system, convenience for changing and maintenance.
-- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
-- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
-- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working
-- Double side assist arm
-- Bead blast seater head with post tank
-- φ186mm stainless bead breaker cylinder
-- Closed body for protect inside parts
Car Tire Changer KT-T835:
Max Wheel Diameter :
41"/1040mm
Max Wheel Width :
15"/350mm
Outside Clamp:
13"-26"
Inside Clamp :
14"-28"
Power Supply:
110V 1PH/60HZ
Motor Power:
2.0HP/1.5KW
Rotation Speed :
6.1/min
Air Pressure :
0.8-1.0Mpa(116-145psi)
Net weight :
582lbs
KT-B760 Wheel Balancer
Automatic measurement ruler for auto input A and D values
The body uses 3mm-thick steel with high strength, solid welding and low vibration
All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
The 36mm shaft thread is made by quenching treatment to offer high strength
The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
Various balance mode for different types of rims to provide more precision
Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
Unit selection (Ounce/Gram, MM/Inch)
High quality integration power board, working stable and reliable
Optional wheel guard
Longer shaft, also compatible with wider wheels
Rim Diameter: <30"
Wheel Width: 3"-12"
Wheel Diameter: <880mm/34.64"
Balancing Speed: 180rpm
Power Supply: 110V 1PH
Motor Power: 0.25KW
Rim Center Hole Dia.: <135mm/5.31"
Wheel Weight: <65KG/143lbs
Balancing Accuracy: ±1g
Measuring Time: 7S
