Regulators

Die-cast zinc construction with stainless steel strainer and renewable brass seat. Diaphragm and disc are oil-resistant Buna-N. Secondary pressure side gauge connections are 1/4 in. NPT (f) and are sealed with removable pipe plugs. Maximum supply pressure is 300 psi (20.68 bar) for all models listed. Operating range 0 to 250 psi (0 to 17.24 bar). Operating temperature range is 40 to 120° F (4 to 49° C).

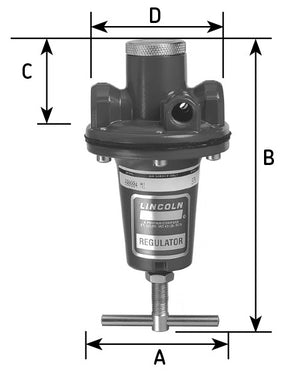

Model

Pipe Size inches

A in. (mm)

B in. (mm)

C in. (mm)

D in. (mm)

Weight lbs. / kg

600004

1/4

3 (76)

6 (152)

1-3/8 (35)

2-3/8 (60)

1.8 (0.8)
