Lincoln Airline Filter 3/8" - 600106P

Name: Lincoln Airline Filter 3/8" - 600106P
Brand: Lincoln
SKU: 600106P
Price: 194.49 USD
Availability: InStock

SKU 600106P

Save 10%

$216.96

$216.96 - $216.96

$216.96

$194.49

$194.49 - $194.49

$194.49

Description

Filters

Die-cast zinc construction with stainless steel strainer and renewable brass seat. Diaphragm and disc are oil-resistant Buna-N. Secondary pressure side gauge connections are 1/4 in. NPT (f) and are sealed with removable pipe plugs. Maximum supply pressure is 300 psi (20.68 bar) for all models listed. Operating range 0 to 250 psi (0 to 17.24 bar). Operating temperature range is 40 to 120° F (4 to 49° C).

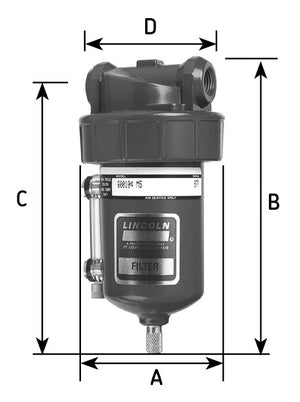

Model	Pipe Size inches	Capacity oz (cm3)	A in. (mm)	B in. (mm)	C in. (mm)	D in. (mm)	Weight lbs. / kg
600104P	3/8	5 (142)	2-15/16 (75)	5-5/8 (143)	5-1/8 (130)	2-13/16 (71.4)	1.8 (0.8)
