Lincoln Airline Filter 1/2" - 600108P
by Lincoln

Lincoln Airline Filter 1/2" - 600108P

SKU 600108P
$160.33 - $160.33
$160.33
$160.33 - $160.33
$160.33

Filters

Die-cast zinc construction with stainless steel strainer and renewable brass seat. Diaphragm and disc are oil-resistant Buna-N. Secondary pressure side gauge connections are 1/4 in. NPT (f) and are sealed with removable pipe plugs. Maximum supply pressure is 300 psi (20.68 bar) for all models listed. Operating range 0 to 250 psi (0 to 17.24 bar). Operating temperature range is 40 to 120° F (4 to 49° C).

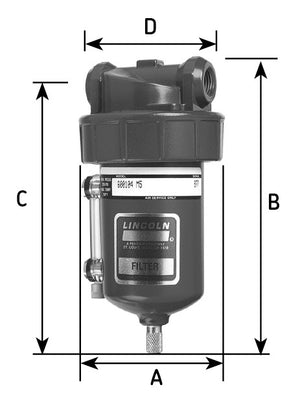

Model

Pipe Size inches

Capacity oz (cm3)

A in. (mm)

B in. (mm)

C in. (mm)

D in. (mm)

Weight lbs. / kg

600108P

1/2

8 (227)

 3-3/4 (95)

6-1/4 (159)

5-5/8 (143)

2-13/16 (71.4)

2.8 (1.3)
