ADDITIONAL INFORMATION:
Lubricators
Constructed of die-cast zinc. Metal bowl with sight glass. Maximum supply pressure 250 psi (17.24 bar). Maximum temperature 150 F (66° C). Oil viscosity maximum not over 800 S.S.U. [SAE #30 not under 85 F (29.4° C)].
|

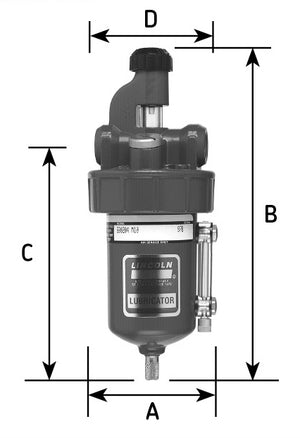

Model |
Pipe Size inches |
Capacity oz (cm3) |
A in. (mm) |
B in. (mm) |
C in. (mm) |
D in. (mm) |
Weight lbs. / kg |
|
600216 |
1 |
16 (454) |
4-7/8 (124) |
10-1/2 (267) |
7-7/8 (200) |
4-9/16 (116) |
4.2 (1.9) |
