Lincoln Airline Filter 1/4" - 600104P
by Lincoln

Lincoln Airline Filter 1/4" - 600104P

SKU 600104P
$148.48 - $148.48
$148.48
$148.48 - $148.48
$148.48

Filters

Die-cast zinc construction with stainless steel strainer and renewable brass seat. Diaphragm and disc are oil-resistant Buna-N. Secondary pressure side gauge connections are 1/4 in. NPT (f) and are sealed with removable pipe plugs. Maximum supply pressure is 300 psi (20.68 bar) for all models listed. Operating range 0 to 250 psi (0 to 17.24 bar). Operating temperature range is 40 to 120° F (4 to 49° C).

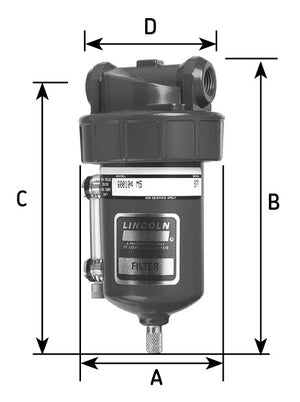

Model

Pipe Size inches

Capacity oz (cm3)

A in. (mm)

B in. (mm)

C in. (mm)

D in. (mm)

Weight lbs. / kg

600104P

1/4

5 (142)

2-15/16 (75)

5-5/8 (143)

5-1/8 (130)

2-13/16 (71.4)

1.8 (0.8)
