Die-cast zinc construction with stainless steel strainer and renewable brass seat. Diaphragm and disc are oil-resistant Buna-N. Secondary pressure side gauge connections are 1/4 in. NPT (f) and are sealed with removable pipe plugs. Maximum supply pressure is 300 psi (20.68 bar) for all models listed. Operating range 0 to 250 psi (0 to 17.24 bar). Operating temperature range is 40 to 120° F (4 to 49° C).

Model

Pipe Size inches

Capacity oz (cm3)

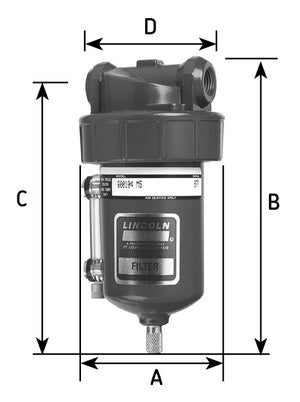

A in. (mm)

B in. (mm)

C in. (mm)

D in. (mm)

Weight lbs. / kg

600112

3/4

16 (454)

 4-7/8 (124)

8-3/4 (222)

 7-3/4 (197)

4-9/16 (116)

6.3 (2.9)
