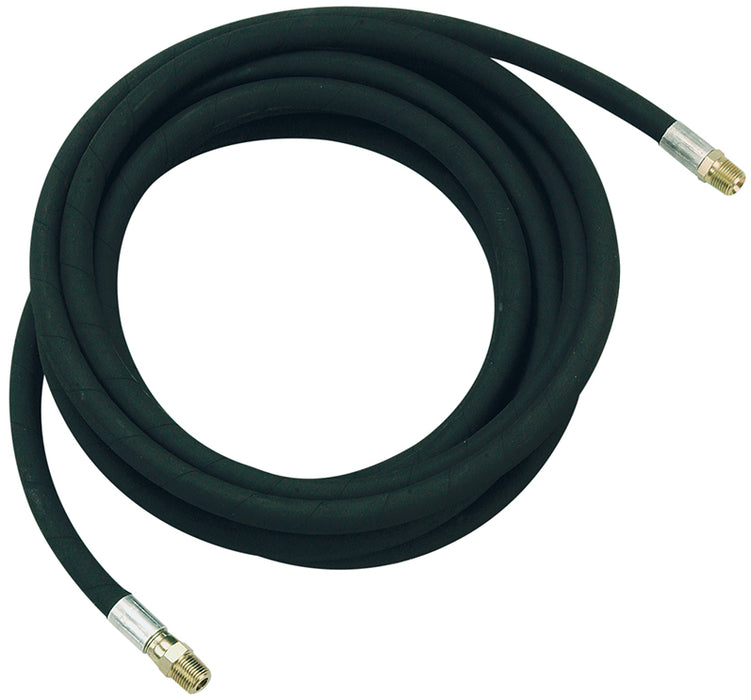

Liquidynamics 81300-06 High Pressure Grease & Hydraulic Fluid Hose | 1 Piece | 1/4" x 6' | 5,000 PSI | 1/4" NPTM Rigid x 1/4" NPTM Swivel | SAE/USCG Marine Listed

1 Piece Only — This listing is for ONE (1) Piece only — this is NOT a multi-pack or kit.

Deliver grease and hydraulic fluid reliably and safely with the Liquidynamics 81300-06, a high pressure hose used for grease and hydraulic fluid transfer. Constructed with a neoprene tube, two high tensile strength wire braids and an MSHA approved oil and weather resistant synthetic rubber cover. Maximum working pressure is 5,000 PSI with a minimum burst pressure of 20,000 PSI. Features a rigid fitting on one end and a swivel fitting on the other for easy connection and maneuverability. Empirelubeequipment + 2

Key Features:

• Quite flexible for a high-pressure hose with a minimum bend radius of 2.0" Toolsource
• Working temperature range of -40°F to +212°F Toolsource
• SAE/USCG Marine Listed — suitable for marine applications
• MSHA approved oil and weather resistant synthetic rubber cover
• Rigid fitting on one end x swivel fitting on the other for easy installation

Compatible with:

• Liquidynamics grease pumps and grease systems
• Hydraulic fluid transfer applications
• Liquidynamics 13062T-S1 Grease System (120 lb.) and similar systems
• Works alongside other 81300 series hoses for extended reach

Specifications:

• Hose ID: 1/4"
• Length: 6 Feet
• Fittings: 1/4" NPTM Rigid x 1/4" NPTM Swivel
• Max Working Pressure: 5,000 PSI
• Min Burst Pressure: 20,000 PSI
• Min Bend Radius: 2.0"
• Temperature Range: -40°F to +212°F
• Construction: Neoprene Tube, Two High Tensile Wire Braids, MSHA Approved Cover
• Listing: SAE/USCG Marine Listed
• Quantity: 1 Piece
• Part Number: 81300-06
• Brand: Liquidynamics

Need a different length? Other Liquidynamics 81300 Series High Pressure Hoses are also available in our store:

• 81300-02 — 1/4" x 2'
• 81300-04 — 1/4" x 4'
• 81300-05 — 1/4" x 5'
• 81300-08 — 1/4" x 8'
• 81300-12 — 1/4" x 12'
• 81300-15 — 1/4" x 15'
• 81300-20 — 1/4" x 20'
• 81300-25 — 1/4" x 25'
