ADDITIONAL INFORMATION:
- Cart with 2 large pneumatic wheels allows for easy mobility
- 1HP, 115V AC, 316 stainless steel self-priming pump delivers 25 GPM with up to 20ft. lift capacity
- High-flow 1 micron DEF filter for purity
- 1 1/4in. x 15ft. suction hose with attached RSV fill coupler allows for easy connection to a MicroMatic RSV valve
- 1in. x 20ft. discharge hose with RSV fill coupler allows for connection to the RSV valve on the receiving tank
*Must contact for shipping charges

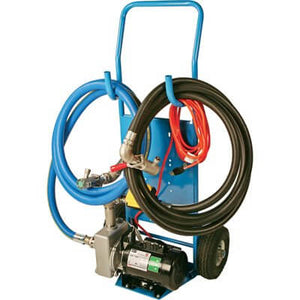

LiquiDynamics Mini DEF Top Draw Transfer Cart - 1HP Pump, Model# 33295P-S4
This 2-wheel LiquiDynamics Mini DEF Top Draw Transfer Cart with self-priming pump allows for closed system transfer and filtering of DEF via the MicroMatic RSV valves found on most DEF totes. Ideal for use in many intermediate DEF transfer applications such as filling 275 or 330 gallon IBC totes or 55 gal. drums. Materials conform to ISO 22241 specifications to ensure DEF purity. Duty Cycle: Continuous, Inlet Port (in.): 1 1/4, Flow (GPM): 25, Max. Suction Lift (ft.): 20, Watts: 745, Volts: 115/230, Amps: 12/6, Nozzle Type: MicroMatic RSV, Bypass Valve: Not required, Seal Type: Viton, Dimensions L x W x H (in.): 26 x 30 x 05, Self-Priming: Yes, Hose (in. x ft.): Suction: 1 1/4 dia. x 15 L; Discharge: 1 dia. x 20 L, Discharge (ft.): 40, HP: 1, Outlet Port (in.): 1, Max. Total Head (ft.): 60, Speed (RPM): 3,450
*Must contact for shipping charges
