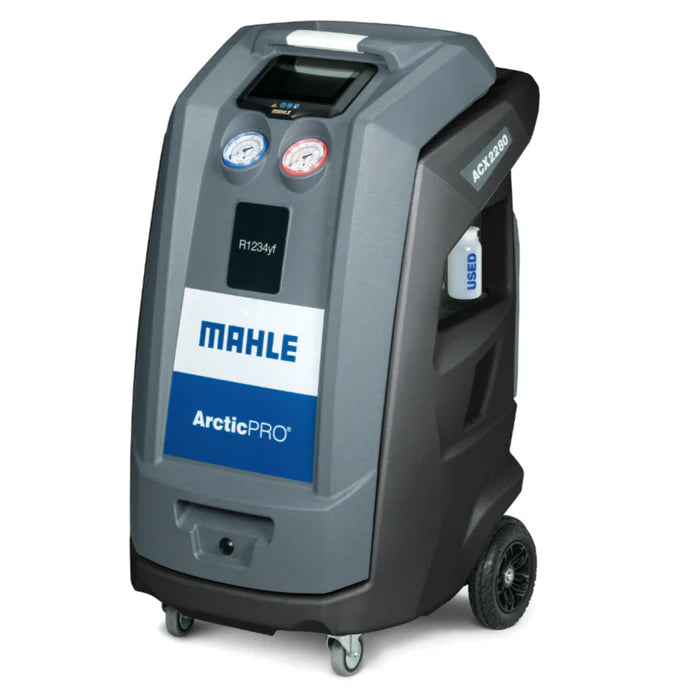

MT-RSR Mahle High Performance R1234yf Air Conditioning Service System MHL-ACX2280

Mahle ACX2280 High Performance R1234yf Air Conditioning Service System

Features:

• State-of-the-art, ergonomic design, 7" capacitive touch screen and intuitive user interface sets a new industry standard.
• New ergonomic hinged service door simplifies unit service.
• LED light indicates status visible from anywhere in the workshop.
• iOS and Android capable phone app allows remote service session mirroring and advanced functions.
• Permanent, automatic wireless software updates, ensuring you always have the latest features.
• Oil management system automatically weighs recovered oil, allowing accurate replenishment of oil removed during service.
• Offers remote support capabilities that allow MAHLE technicians to connect to a unit over WiFi for troubleshooting and advanced support.
• Data management and reporting capabilities provide the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• An integrated refrigerant identifier adds additional convenience and saves time on services.
• Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• The unit retains valuable service records, providing network printing capability to print services provided for customer.

Specifications:

• Certifications SAE J2843, SAE J2888, UL 1963
• Charge Performance +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
• Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation Fully Automatic
• Charging Cylinder 30 lb. (13.6 kg) DOT
• Compressor 3/8 HP-0.279kW
• Dimensions (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
• Weight 215 lb. (98 kg)
• Display Color, 7” Capacitive Touch Screen
• Filter Drier Capacity 200 lb. (91 kg) spin-on type
• Hoses 9 ft. (2.75 m)
• Hybrid Function Certified
• Languages English, French, Spanish
• Operating Ranges 50 degrees - 122 degrees F (10° to 50°C)
• Power Source 120 VAC - 60 HZ - 12 AMP
• Vacuum Pump 1.8 CFM dual stage
• Warranty 1 Year Labor, 2 Years Parts
