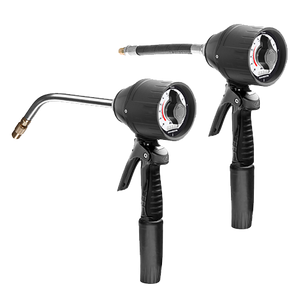

Samson MC8 4-16QT Meter/Handle Flex/Qtr Turn Tip 1/2" 365 805

SKU:Samson 365 805

Vendor
Brand: Samson
Sale price
$493.09

Quantity must be 1 or more

ADDITIONAL INFORMATION:

Samson mechanical metered control valves are used at the end of the hose assembly for measured dispensing of lubricants and anitfreeze solutions in tough, intensive use applications.

Fluids Handled

  • Synthetic and mineral based oil
  • Gear Oil
  • Hydraulic oil and fluids
  • ATF
  • Antifreeze solutions



Part No.

365 805 MC8 Flexible 4-16 Qts Auto Tip-Lubricants

Market Served

Fleet service, Lube Trucks, Mining equipment maintenance, Car and Truck Dealerships, Fast Lube and Maintenance Shops, Mass Transit Maintenance, Railroad.




Accuracy, Durability with proven performance

• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• Fully mechanical register.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• The MC8 uses the CV11 SERIES control handle. This handle is flange coupled to eliminate the use of adapters and eliminate leaks.



                                                          Technical Data

Maximum Free Flow Rate

8 gal/min (30 l/min)

Accuracy

+/- 0.65%

Maximum Working Pressure

1,450 psi (100 bar)

Fluid Inlet

1/2" NPTF

Fluid Outlet

1/2" NPTF

Wetted Materials

Aluminum, Zinc alloy, Stainless Steel, NBR, Brass, Steel, TPU, Polyamide

Weight

3.74 Ib (1.7kg)
