Liquidynamics Medium Pressure Oil Hose 1/2 | P/N 81200 series - Empire Lube Equipment

by LiquiDynamics

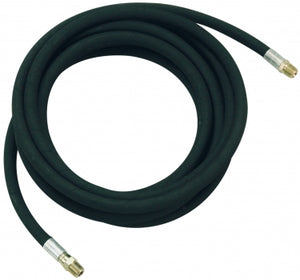

Liquidynamics 81200-02 Oil Hose, 1/2” x 2’, w/ 1/2” NPTM Rigid x 1/2” NPTM Swivel, 2500 PSI

Name: Liquidynamics 81200-02 Oil Hose, 1/2” x 2’, w/ 1/2” NPTM Rigid x 1/2” NPTM Swivel, 2500 PSI
Brand: LiquiDynamics
SKU: 81200-02
Price: 67.5 USD
Availability: InStock

SKU 81200-02

$67.50 - $67.50

$67.50

$67.50 - $67.50

$67.50

Quantity

Description

These hoses are suitable for use with Air, Water, Oil, Hydraulic Fluid, Transmission Fluid and Antifreeze as appropriate. Hoses are typically supplied with a rigid fitting on one side and a swivel fitting on the other side.

Please contact Liquidynamics if you require a special hose type, length or fittings.

For use with all ratio pumps up to and including 13:1 pumps.

An excellent general purpose hose used for oil, hydraulic fluid, transmission fluid and antifreeze. Hose is constructed with a neoprene tube, high tensile steel wire braid and oil and weather resistant synthetic rubber. Hose is rated to a maximum working pressure of 4,000 PSI and a minimum burst of 10,000 PSI and has a temperature range of -40? F to +250? F. The hose is SAE/USCG marine listed and exceeds SAE 100R1 specifications. It is very flexible with a minimum bend radius of 3.0 inches, OD is 0.75”. Hose may be used for suction or discharge.

Country

Country

Liquidynamics 81200-02 Oil Hose, 1/2” x 2’, w/ 1/2” NPTM Rigid x 1/2” NPTM Swivel, 2500 PSI
