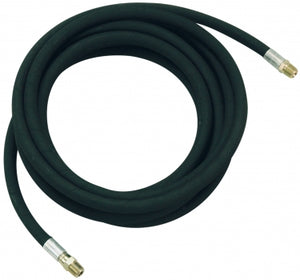

Liquidynamics 81250-02 Oil Hose, 3/4” x 2’, w/ 3/4” NPTM Rigid x 3/4” NPTM Swivel, 1250 PSI

Description

These hoses are suitable for use with Air, Water, Oil, Hydraulic Fluid, Transmission Fluid and Antifreeze as appropriate. Hoses are typically supplied with a rigid fitting on one side and a swivel fitting on the other side.

Please contact Liquidynamics if you require a special hose type, length or fittings.

For use with High Volume Ratio Pumps.

An excellent general purpose hose used for oil, hydraulic fluid, transmission fluid and antifreeze. Hose is constructed with a neoprene tube, high tensile steel wire braid and oil and weather resistant synthetic rubber. Hose is rated to a maximum working pressure of 1,250 PSI and a minimum burst of 5,000 PSI and has a temperature range of -40? F to +250? F. The hose is SAE/USCG marine listed and exceeds SAE 100R1 specifications. It is very flexible with a minimum bend radius of 4.3” inches, OD is 1.01”. Hose may be used for suction or discharge.
