ADDITIONAL INFORMATION:
Alemite offers a selection of pumps to meet your fluid handling and dispensing needs. Each pump is designed to deliver reliable, consistent performance to keep your operation running smoothly.
CHEMICAL AND MATERIAL HANDLING PUMPS

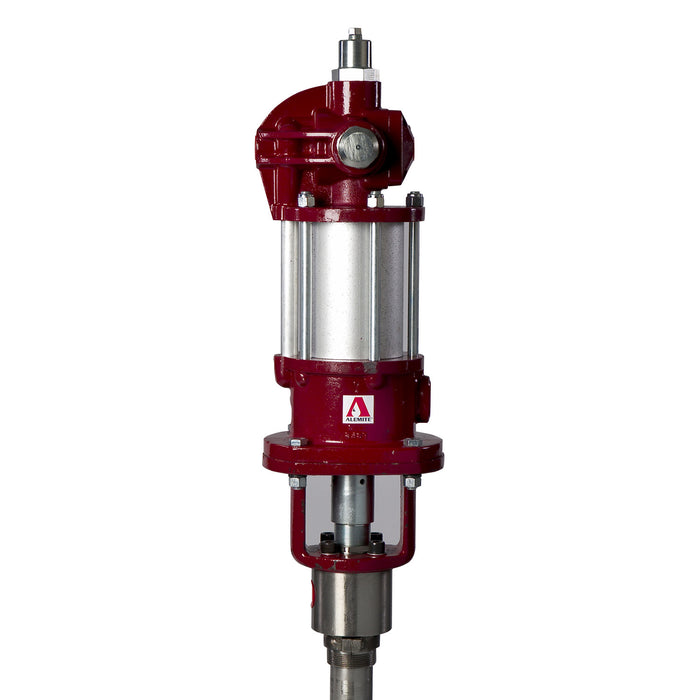

Alemite Class 2, 3 and 4 Pumps are designed for medium to heavy fluids and medium semi-fluids, including adhesives, sealants, dough and pastes. Power piston downtube combines the priming advantages of a ball check with the performance of an upper chop check to handle heavier loads. Recommended for dispensing, extruding and spraying applications.
MEDIUM - HEAVY DUTY
Alemite Class 2, 3 and 4 Pumps are designed for medium to heavy fluids and medium semi-fluids, including adhesives, sealants and pastes. Power piston downtube combines the priming advantages of a ball check with the performance of an upper chop check to handle heavier loads. Recommended for dispensing, extruding and spraying applications.
FEATURES:
• Stainless steel construction and PTFE seals (model 7886-S5) will tolerate pumping corrosive fluids
• ¾" NPTF(f) air inlet
|
Product # |
Wetted Materials |
Drum Size |
Material Outlet |
Seal Material |
Pump Ratio |
Free Flow (per minute) |
Cycles |
Weight |
|
7886-A5 |
Carbon Steel |
400 lb (180 kg) |
1" NPTF(f) |
Buna |
11:1 |
13 gallon (49 liter) |
30 per gallon (6.7 per liter) |
78 lb (35.3 kg) |
|
7886-S5 |
Stainless Steel |
400 lb (180 kg) |
1" NPTF(f) |
PTFE |
11:1 |
13 gallon (49 liter) |
30 per gallon (6.7 per liter) |
82 lb (37.2 kg) |
