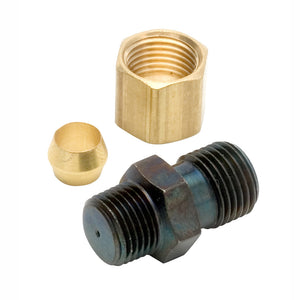

Alemite Mist Fittings Cfm.08 (S) m-2 - 380791-2

SKU Alemite 380791-2
$51.95 - $51.95
$51.95
$51.95 - $51.95
$51.95

Alemite oil mist systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. These reliable systems have no moving parts, deliver a constant, measured stream of clean, atomized oil and are a cost-effective option for ongoing automatic lubrication.



OIL-MIST SYSTEM COMPONENTS

MIST FITTINGS

Primarily used for enclosed bearing housings and rely on the bearing velocity to provide the reclassifying function. They are used on both pure mist and purge mist applications. Brass fittings have black zinc finish

Inlet 1/8" NPT(f) Inlet 1/4" OD tube fitting Orifice CFM @ 20 in. H20
Outlet
1/8" PTF(m) 		Outlet
1/4" NPT(m) 		Outlet
1/8" PTF(m)
Brass Brass Brass 303 SS Diameter Length Flow area
380791-2 381290-2 387603-2 0.032" 0.44" 0.0008 0.08
380791-4 381303-4 381290-4 387603-4 0.045" 0.44" 0.0016 0.16
380791-6 381303-6 381290-6 387603-6 0.055" 0.44" 0.0024 0.24
381303-8 381290-8 387603-8 0.068" 0.44" 0.0036 0.38
380791-10 381303-10 381290-10 387603-10 0.078" 0.44" 0.0048 0.49
380791-16 381303-16 381290-16 387603-16 0.089" 0.44" 0.0062 0.68
