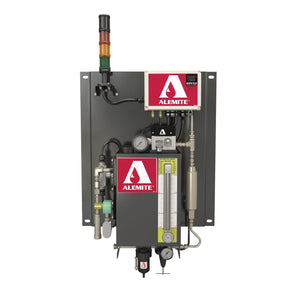

Alemite Modular Oil-Mist Lubrication Generators

SKU: Alemite 31152
Vendor
Brand: Alemite
Regular price
$6,700.00
Sale price
$6,700.00
Quantity must be 1 or more

Alemite oil mist systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. These reliable systems have no moving parts, deliver a constant, measured stream of clean, atomized oil and are a cost-effective option for ongoing automatic lubrication.



OIL-MIST GENERATORS

Alemite Oil-Mist Generators provide lubrication for multiple lubrication points or machines.

MODULAR OIL-MIST LUBRICATION GENERATORS

    Product # CFM Nominal Flow Range Reservoir Capacity Oil Heater
    31151-(X) 1 0.3-1.3 CFM 3 gal/11.36 l 115 VAC
    31152-(X) 2.3 1.3-2.7 CFM 3 gal/11.36 l 115 VAC
    31154-(X) 4.3 2.4-5.2 CFM 3 gal/11.36 l 115 VAC
    31159-(X) 9.7 5.5-12.4 CFM 3 gal/11.36 l 115 VAC
    32301-(X) 1 0.3-1.3 CFM 3 gal/11.36 l 230 VAC
    32302-(X) 2.3 1.3-2.7 CFM 3 gal/11.36 l 230 VAC
    32304-(X) 4.3 2.4-5.2 CFM 3 gal/11.36 l 230 VAC
    32309-(X) 9.7 5.5-12.4 CFM 3 gal/11.36 l 230 VAC



    * See table below for ordering various options





    Included Components Versions:
    A B C D E
    Basic oil-mist generator with 3 gallon reservoir
    (Basic mist generator with 3 gallon reservoir with clean-out/inspection plate, relief valve, manual oil loader valve, mist pressure gauge, inlet air assembly (filter with auto water drain, regulator and pressure gauge) and oil heater (order manual refill pump 388034 separately if indicated))
    Mounting plate
    Audible and visual alarm lights
    High/low mist pressure switches
    NEMA 4 control box
    Automatic oil refill capability with solenoid valve, filter and switch
    Air heater and temperature controller



    (1) A manual pump (P/N 388034) is required to refill oil reservoir. Sold separately.

    (2) Does not include pneumatic refill pump

    (3) Includes 40 micron cleanable oil filter

    Approximate oil consumption rate = 0.277 x CFM = ounces per hour of operation





    Part Number Configuration Examples:



    31159-A

    • Basic generator with 9.7 CFM nozzle
    • oil heater and mist pressure gauge only
    • 115 V AC supplied power
    32304-B
    • Basic generator with 4.3 CFM nozzle
    • oil heater
    • mist pressure gauge
    • mounting plate
    • mist pressure switches
    • alarm lights and NEMA 4 control box
    • 230 V AC supplied power
    31152-C
    • Basic generator with 2.3 CFM nozzle
    • oil heater
    • mist pressure gauge
    • mounting plate
    • mist pressure switches alarm lights and NEMA 4 control box
    • automatic oil refill capability
    • 115 V AC supplied power
