ADDITIONAL INFORMATION:
Alemite offers a selection of pumps to meet your fluid handling and dispensing needs. Each pump is designed to deliver reliable, consistent performance to keep your operation running smoothly.
PUMP ACCESSORIES
PUMP HOISTS
Alemite pump hoist to support your fluid handling.
|
Product # |
Description |
Included Items |
Comments |
Additional Comments |
Weight |
Used With Pump # |
|
|
7818-F5 |

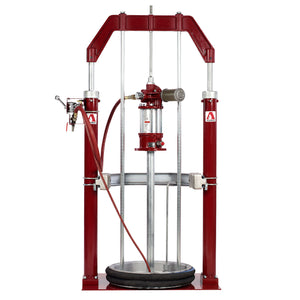

Bridge Hoist |
Guide rods, drum retaining mechanisms, vacuum break, pump air hose assemblies and follower (327690) |
Height: 69-1/4" (1.76 m) (lowered), 107" (2.72 m) (raised) Width: 42-1/2" (1.08 m) Depth: 27-3/16" (691 mm) Air inlet: 3/4" NPTF(f) Maximum pressure: 200 psi (13.8 bar) Drum size: 400 lb (180 kg) |
Pump Model 7785-A5 7786-A5 7886-A5 |
Adapter required 327247 327247 |
370 lb (167.6 kg) |
7785-A5 7786-A5 7889-C |
|
2741-4 |
Single Post Pump Hoist |
Hoist, Cover assembly |
Height: 62-1/8" (1.6 m) (lowered), 98-5/8" (2.5 m) (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi (10.3 bar) Recommended Accessory: Adapter plate (322593) adapts cover assembly to bung mounted pumps |
Alemite Industrial Pumps mount directly to the cover assembly |
75 lb (34 kg) |
7784-A4 7785-A5 7786-A5 7795-A5 |
|
|
2742-4 |
Single Post Pump Hoist |
Hoist, Bracket assembly |
Height: 62-1/8" (1.6 m) (lowered), 98-5/8" (2.5 m) (raised) Air inlet: 1/4" NPTF (f) Maximum pressure: 150 psi (10.3 bar) Recommended Accessory: Follower plate (327242) for Class III, IV, and V materials, 400 lb (180 kg) |
Alemite Industrial Pumps mount directly to the bracket assembly |
75 lb (34 kg) |
7784-A4 7785-A5 7785-B5 7786-A5 7786-C 7795-A5 7795-B5 |
|
