Rhino Tuff Tanks RTT-4079 3/4″ ALUMINUM DIAPHRAGM PUMP - Empire Lube Equipment
by Rhino Tuff Tanks

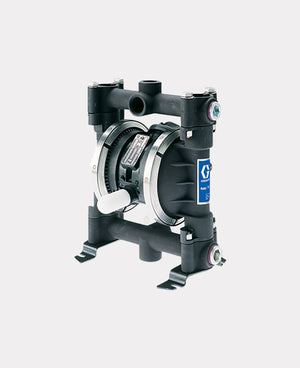

Rhino Tuff Tanks RTT-4079 3/4″ ALUMINUM DIAPHRAGM PUMP

SKU Rhino Tuff Tanks 500427
$1,219.23 - $1,219.23
$1,219.23
$1,219.23 - $1,219.23
$1,219.23

DESCRIPTION

The Husky 716 air operated diaphragm pump features aluminum construction and an external controller for remote control capabilities.

FEATURES:

  • Aluminum/Buna N
  • 3/4 in (19.05 mm) center- and end-porting
  • No seals to leak or fail
  • Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks

ADDITIONAL INFORMATION

Weight 8.5 lbs
Air Pressure Operating Range

30-100 psi (7 bar)
Maximum Air Consumption

28 scfm
Maximum Free-flow delivery

16 gpm (61 lpm)
Typical Application

Oil Transfer
Oil Evacuation
Water, Anti-freeze
Fuel Dispense (with 50 psi relief valve)
Fuel Transfer
Windshield Wash Solution
Air Inlet NPT

1/2
Air Exhaust Port

3/8 npt(f)
Fluid Inlet / Outlet

3/4 npt(f)
Air Valve Replacement Kit

241657
Kits (Seats, Balls, Diaphragms)

D05277
Diaphragm Kit

D05007
Manual

308573
Instruction Manual

308573 and 308981
Maximum Fluid Working Pressure

100 psi
Maximum Pump Speed

400 cpm
Gallons per cycle

.4
Maximum Suction Lift (water with buna balls)

15 ft dry, 25 ft wet
Maximum Size Pumpable Solids

3/32 in
Minimum Operating Temperature

40 °F
Maximum Operating Temperature

225 °F
Sound Power Level (measured per ISO standard 9614-2)

77 dB(A) – At 70 psi (4.8 bar, 0.48 MPa) at 50 cycles per minute
95 dB(A) – At 100 psi (7 bar, 0.7 MPa) at maximum cycles per minute
Sound Pressure Level (measured 1 m from pump)

67 dB(A) – At 70 psi (4.8 bar, 0.48 MPa) at 50 cycles per minute
85 dB(A) – At 100 psi (7 bar, 0.7 MPa) at maximum cycles per minute
Wetted Parts

aluminum, stainless steel, PTFE, zinc-plated steel
Non-wetted External Parts

Polypropylene, stainless steel, polyester (labels), nickel-plated brass, epoxy-coated steel (feet)
Manufacturer Part Number

241906
