ADDITIONAL INFORMATION:

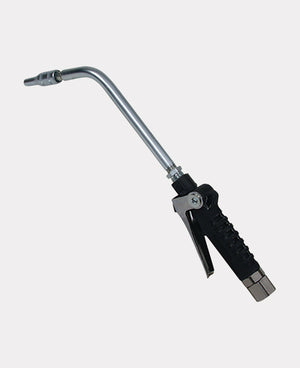

High-flow non-metered valve dispenses motor oil, transmission fluid and anti-freeze.
DESCRIPTION
High-flow non-metered valve dispenses motor oil, transmission fluid and anti-freeze.
FEATURES
- 1,500 psi (103 bar)
- Sturdy Cast body designed for use in tough environments
- Indoor or outdoor use
- Lock-on trigger
- 1/2 npt(f) inlet with built-in ball bearing swivel allows for ergonomic operation
- Rigid extension and standard automatic non-drip quick-close nozzle for oil products
- Inlet screen aids in keeping fluids clean
.
ADDITIONAL INFORMATION
| Weight | .4 lbs |
|---|---|
| Typical Applications |
Automotive dealerships |
| Typical Fluids Handled |
Motor Oils |
| Maximum Recommended Flow Rate |
15 gpm (56.8 lpm) |
| Maximum Operating Pressure |
1500 psi (103 bar) |
| Operating Temperature Range |
-40°-180°F (-40°-82°C) |
| Inlet |
1/2 in npt(f) swivel |
| Outlet |
Rigid extension and standard automatic non-drip quick-close nozzle for oil products |
| Wetted Parts |
Aluminum, sst, cs, acetal, nitrile rubber, tpe |
| Warranty |
5 years |
| Instruction Manual |
312789 |
| Manufacturer Part Number |
247712 |
