ADDITIONAL INFORMATION:

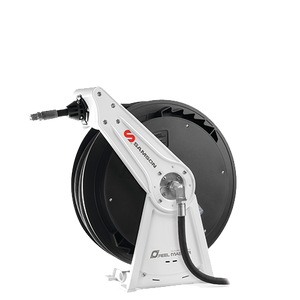

506 Series Low Pressure
Aluminum base and arms with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.
Part No. |
506 101 30' x 3/8" NPTM |
Market Served |
Quick Lubes, Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing |
Fluids Handled
- Water
- Air
- Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
- Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
- Fully ported shaft and swivel.
- Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
- Large guide latching area for easier operation.
- Six roller guide outlet prevents hose pinching and reduces friction.
- Hose guide arm can be placed in different positions to accommodate any method of mounting.
- Hose reels with hose include 30″ inlet hose.
30',
3/8",
3/8" NPT(M), 1/2" NPT(M)
300 psi
