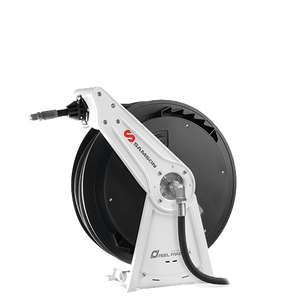

506 Series Medium Pressure

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Part No.

506 202 30' x 1/2" NPTM

Market Served

Quick Lubes, Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing

 Fluids Handled

  • Windshield Wash Solution
  • Synthetic and Mineral Oils
  • Antifreeze solutions
  • Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
  • Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
  • Fully ported shaft and swivel.
  • Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
  • Large guide latching area for easier operation.
  • Six roller guide outlet prevents hose pinching and reduces friction.
  • Hose guide arm can be placed in different positions to accommodate any method of mounting.
  • Hose reels with hose include 30″ inlet hose.
30', 50'
1/2"
1/2" NPT(M)
2,000 psi
