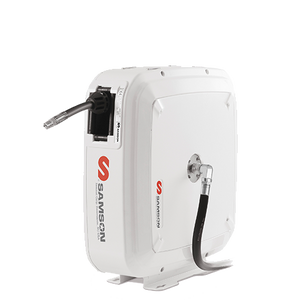

Samson 507 Series Enclosed Hose Reel HP 30' X 1/4" 507 300

507 Series High Pressure

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

• Grease

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Positionable mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

Hose Length: 30', 50'

Hose ID: 1/4", 3/8"

Outlet Thread: 1/4" NPTM

Max. Working Pressure: 5,000 psi, 4,000 psi
