ADDITIONAL INFORMATION:

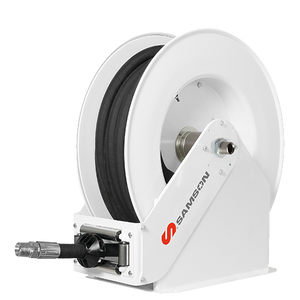

508 Series Low Pressure
Full metal heavy duty double pedestal hose reels, can handle up to 50′ x 1″, 60′ and 75′ x 3/4″ or 100′ x 1/2″ hose.
|
Part No. |
508 152 100' x 1/2" NPTM |
|
Market Served |
General Manufacturing, Mass Transit Maintenance, Railroad, Fleet service, Lube Trucks, Mining equipment maintenance |
Fluids Handled
- Air
- Waterbased Fluid
- Water
• Very tough construction large capacity reels, able to stand regular use and abuse in Intensive Duty applications.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Hose guide arm can be placed in different positions to accommodate any method of mounting.
• Narrow footprint allows mounting more reels on the same surface.
Hose Length: 50', 100'
Hose ID: 1", 1/2"
Outlet Thread: 1" NPTM, 1/2" NPTM
Max. Working Pressure: 300 psi
