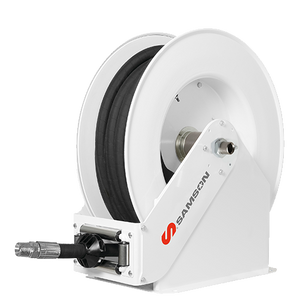

Samson 508 Series Hose Reel MP 100' X 1/2" 508 252

Samson 508 Series Hose Reel MP 100' X 1/2" 508 252

by Samson
$2,242.69 - $2,242.69
$2,242.69
$2,242.69 - $2,242.69
$2,242.69

508 Series Medium Pressure

Full metal heavy duty double pedestal hose reels, can handle up to 50′ x 1″, 60′ and 75′ x 3/4″ or 100′ x 1/2″ hose.

Part No.

508 252 100' x 1/2" NPTM

Market Served

General Manufacturing, Mass Transit Maintenance, Railroad, Fleet service, Lube Trucks, Mining equipment maintenance

Fluids Handled

  • Antifreeze
  • Synthetic and Mineral Oils
  • Windshield Wash Fluid

• Very tough construction large capacity reels, able to stand regular use and abuse in Intensive Duty applications.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Hose guide arm can be placed in different positions to accommodate any method of mounting.
• Narrow footprint allows mounting more reels on the same surface.

100'
 1/2"
 1/2" NPT(M)
2,000 psi
