ADDITIONAL INFORMATION:
Directflo 200 Performance Series
Typical applications for polypropylene pumps are transferring and dispensing of Windshield wash and antifreeze solutions and AdBlue®/DEF.
Metal pumps have an Aluminum air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions, lubricants, diesel, and waste oil evacuation.
Pump inlet and outlet ports can be mounted in different positions for increased installation versatility.
|
Part No: |

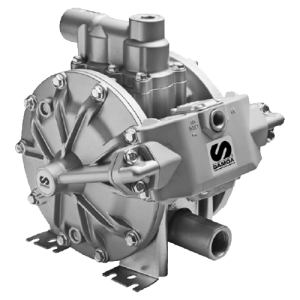

555 030 DP200 Metal Pump - Buna-N/Acetal |
|
Markets Served: |
Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Mass Transit Maintenance, Railroad, Service Shops, Agriculture |
Pump Pressure Ratio
1:1
Maximum Free Flow Rate
53 gal/min (200 l/min)
Maximum Suction Lift
26' (8 m)
Minimum Air Pressure
22 (1.5 bar)
Maximum Air Pressure
120 psi (8 bar)
Max Size Solid Suspension
1/4" (6 mm)
Air Inlet
3/8" NSPM (F)
Fluid Outlet-Plastic
1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange
Fluid Outlet-Metal
1" NPTF
Fluid Inlet-Plastic
1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange
Fluid Inlet-Metal
1" NPTF
Wetted Materials
Buna-N, Stainless Steel, FKM
Fluids Handled
