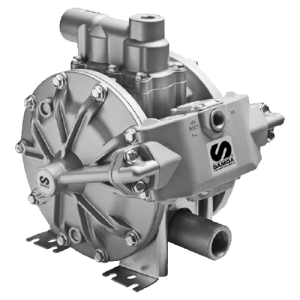

Samson DP 200 1" Pump Poly/PTFE 555 164

Typical applications for polypropylene pumps are transferring and dispensing of Windshield wash and antifreeze solutions and AdBlue®/DEF.

Metal pumps have an Aluminum air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions, lubricants, diesel, and waste oil evacuation.

Pump inlet and outlet ports can be mounted in different positions for increased installation versatility.

Pump Pressure Ratio

1:1

Maximum Free Flow Rate

53 gal/min (200 l/min)

Maximum Suction Lift

26' (8 m)

Minimum Air Pressure

22 (1.5 bar)

Maximum Air Pressure

120 psi (8 bar)

Max Size Solid Suspension

1/4" (6 mm)

Air Inlet

3/8" NSPM (F)

Fluid Outlet-Plastic

1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange

Fluid Outlet-Metal

1" NPTF

Fluid Inlet-Plastic

1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange

Fluid Inlet-Metal

1" NPTF

Wetted Materials

Buna-N, Stainless Steel, FKM

Fluids Handled

• Windshield Wash Solution
• DEF
• Diesel
• Waste Oil & Antifreeze
• Oils
• Antifreeze
