Zeeline ZE1037 - 1/2" Double Diaphragm Pump
by Zeeline

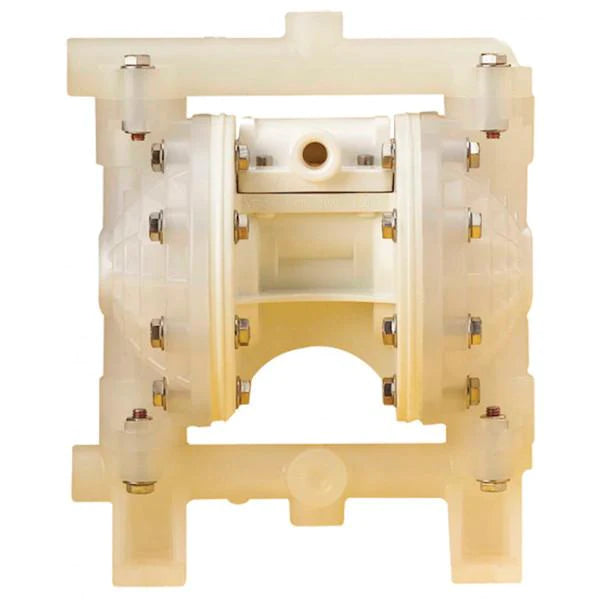

Zeeline ZE1037 - 1/2" Double Diaphragm Pump

SKU ZE1037
Save 10% Save 10%
$1,232.03
$1,232.03 - $1,232.03
$1,232.03
$1,104.39
$1,104.39 - $1,104.39
$1,104.39

1/2" Double Diaphragm Pump

Features:

  • (2) 1/2" x 4' oil hose (ZE2204)
  • Air Filter/Regulator (ZE1559A2-ASSY)
  • Warning! This item is not suitable for flammable liquids

Specifications:

  • Air Ratio: 1:1
  • Fluid Inlet/Outlet: 1/2" NPT
  • Max Flow: 14 GPM
  • Air Inlet Port: 1/4" NPT
  • Body Construction: Polypropylene
  • Diaphragms: Buna N
  • Balls: Acetal
  • Seats: Polypropylene
  • Ul Listed: No
  • Air Consumption: 16CFM @ 100 PSI
  • Bolt Pattern: 4.375" X 6.75"
  • Height: 10.600"
  • Max Particle Size: 1/8"
  • Suction Lift-Dry: 15'
  • Suction Lift- Wet: 25'
