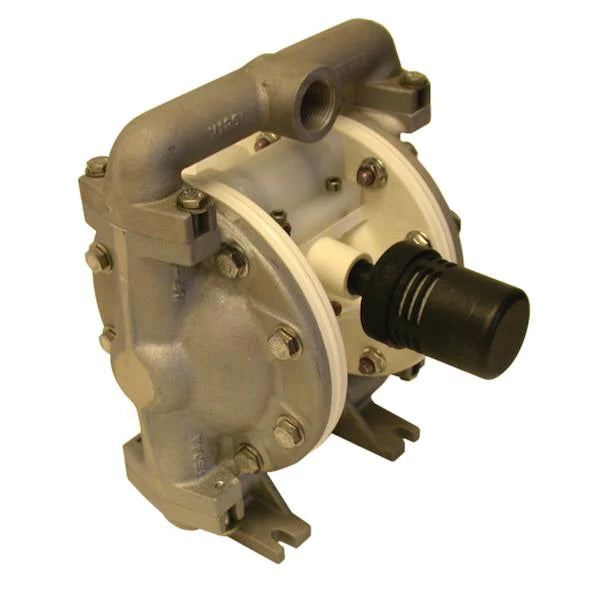

3/4" Double Diaphragm Pump

Warning! This item is not suitable for flammable liquids

Specifications

  • Air Ratio: 1:1
  • Fluid Inlet/Outlet: 3/4" NPT
  • Max Flow: 14 GPM
  • Air Inlet Port: 1/4" NPT
  • Body Construction: Alum / Polypro
  • Diaphragms: Buna N
  • Balls: Acetal
  • Seats: Aluminum
  • Ul Listed: No
  • Air Consumption: 16CFM @ 100 PSI
  • Bolt Pattern: 3.250" X 4.370"
  • Height: 10.250"
  • Max Particle Size: 1/8"
  • Suction Lift- Dry: 15'
  • Suction Lift- Wet: 25'
